Tube Expanders
800-5 SeriesProducts
Five Roll Tube Expander For Thin Wall Condenser Tubes
Use
Highly recommended for use on thin walled condenser tubes (19 thru 24 gauge walls) of Stainless Steel, Titanium, Incoloy and other exotic materials.
Advantages
Gives a more concentric and even expansion when expanding thin walled condenser tubes vs. a conventional 3 roll condenser tube expander and reduces tube spring back effect.

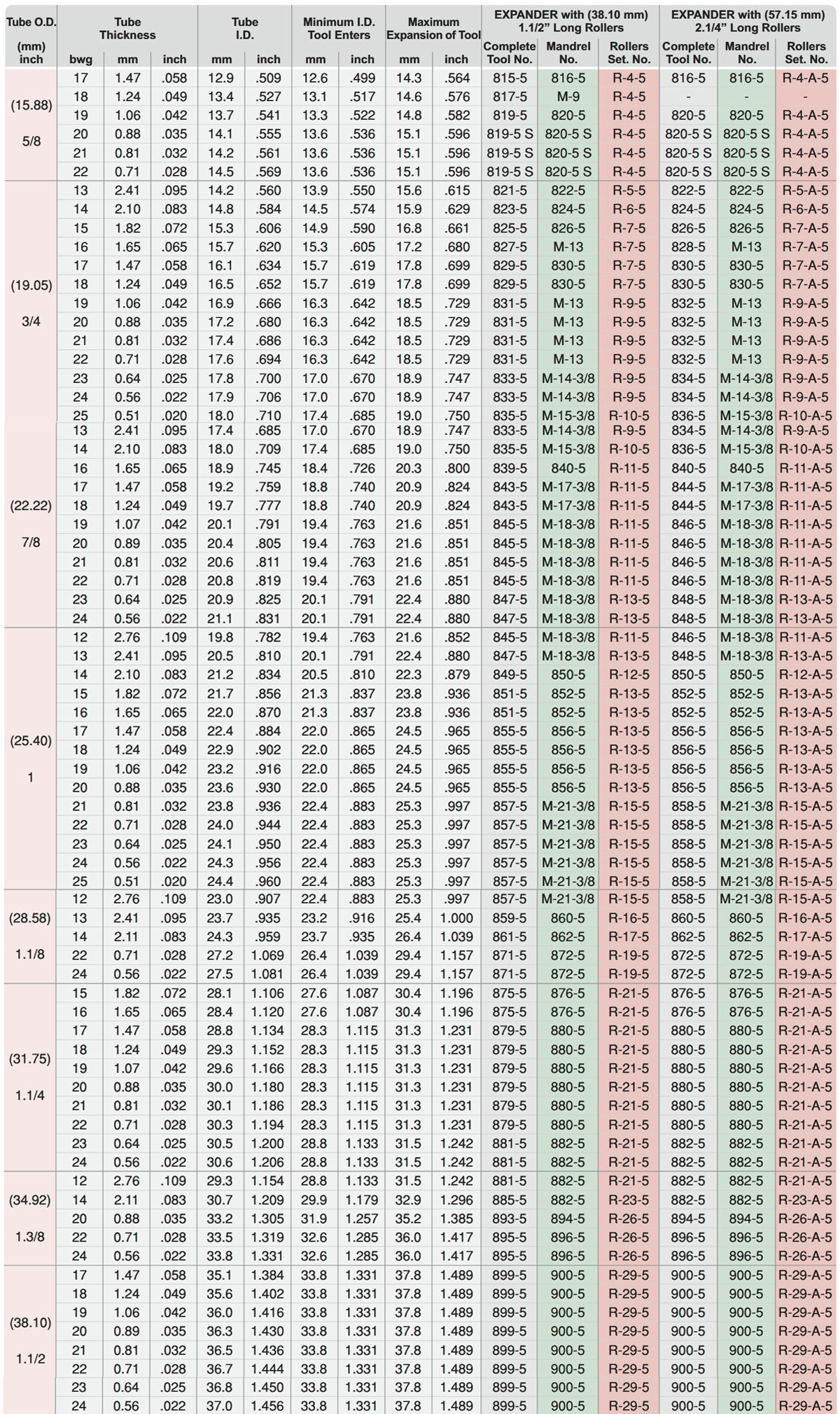

For Tubes Internal Diameter
From (12.9 mm) .509” - (36.7 mm) 1.44”
